ST_AddPoint
Signatures
GEOMETRY ST_AddPoint(GEOMETRY geom, POINT point);
GEOMETRY ST_AddPoint(GEOMETRY geom, POINT point, DOUBLE tolerance);
Description
Snaps point to geom if it is within a distance of tolerance of
geom. If no tolerance is given, a default of 10E-6 is used.
If there are several candidates within a minimal distance, snaps point
to the first one found.
Examples
SELECT ST_AddPoint('POINT(0 0)', 'POINT(1 1)');
-- Answer: NULL
SELECT ST_AddPoint('MULTIPOINT((0 0), (3 3))', 'POINT(1 1)');
-- Answer: MULTIPOINT((0 0), (3 3), (1 1))

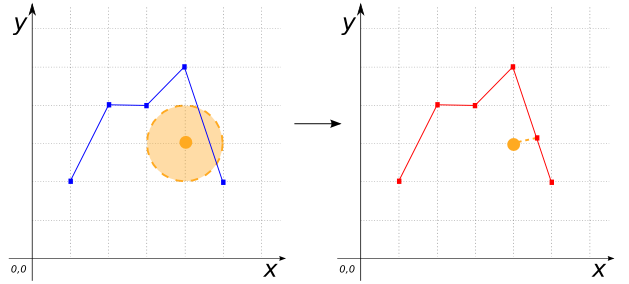

SELECT ST_AddPoint('LINESTRING(1 2, 2 4, 3 4, 4 5, 5 2)',
'POINT(4 3)', 1);
-- Answer: LINESTRING(1 2, 2 4, 3 4, 4 5, 4.6 3.2, 5 2)

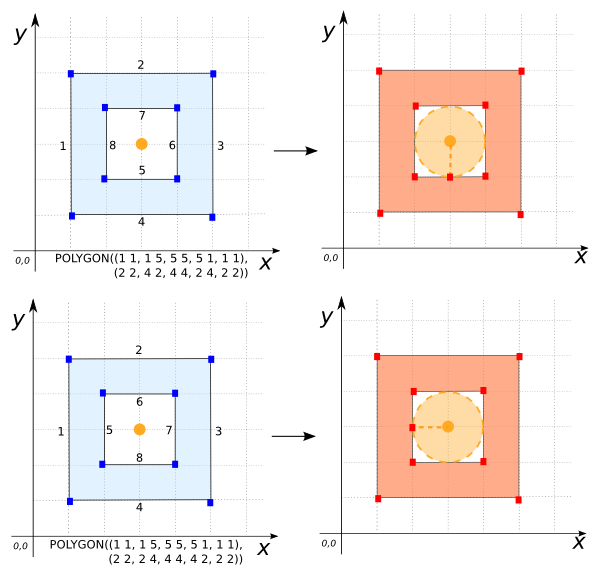

Note: The point added depends on the input geometry’s coordinate order
SELECT ST_AddPoint('POLYGON((1 1, 1 5, 5 5, 5 1, 1 1),
(2 2, 4 2, 4 4, 2 4, 2 2))',
'POINT(3 3)', 1);
-- Answer: POLYGON((1 1, 1 5, 5 5, 5 1, 1 1),
-- (2 2, 3 2, 4 2, 4 4, 2 4, 2 2))
SELECT ST_AddPoint('POLYGON((1 1, 1 5, 5 5, 5 1, 1 1),
(2 2, 2 4, 4 4, 4 2, 2 2))',
'POINT(3 3)', 1);
-- Answer: POLYGON((1 1, 1 5, 5 5, 5 1, 1 1),
-- (2 2, 2 3, 2 4, 4 4, 4 2, 2 2))
CREATE TABLE input(poly GEOMETRY(POLYGON), p GEOMETRY(POINT));
INSERT INTO input VALUES ('POLYGON((1 1, 1 5, 5 5, 5 1, 1 1),
(2 2, 4 2, 4 4, 2 4, 2 2))',
'POINT(3 3)');
SELECT ST_AddPoint(poly, p, 0.5) FROM input;
-- Answer: POLYGON((1 1, 1 5, 5 5, 5 1, 1 1),
-- (2 2, 4 2, 4 4, 2 4, 2 2))

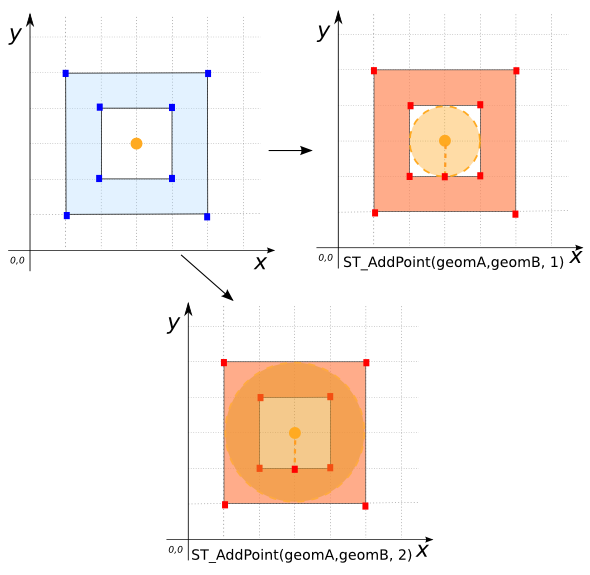

Note: In the next two examples, the result is the same regardless of the tolerance.
SELECT ST_AddPoint(poly, p, 1) FROM input;
-- Answer: POLYGON((1 1, 1 5, 5 5, 5 1, 1 1),
-- (2 2, 3 2, 4 2, 4 4, 2 4, 2 2))
SELECT ST_AddPoint(poly, p, 2) FROM input;
-- Answer: POLYGON((1 1, 1 5, 5 5, 5 1, 1 1),
-- (2 2, 3 2, 4 2, 4 4, 2 4, 2 2))
