ST_ClosestCoordinate

Signatures

{POINT, MULTIPOINT} ST_ClosestCoordinate(POINT point, GEOMETRY geom);

Description

Returns the coordinate of geom closest to point using 2D distances (z-coordinates are ignored).

Note

What if the closest coordinate is not unique?

Then all closest coordinates are returned in a MULTIPOINT

Examples

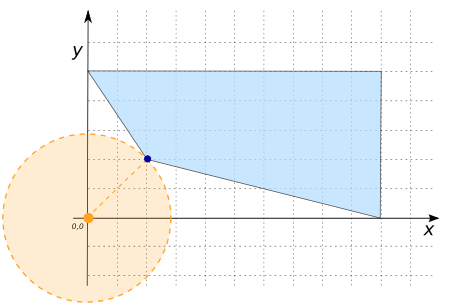

SELECT ST_ClosestCoordinate('POINT(0 0)',
                            'POLYGON((2 2, 10 0, 10 5, 0 5, 2 2))');
-- Answer: POINT(2 2)

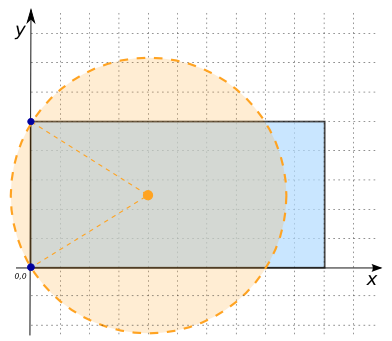

SELECT ST_ClosestCoordinate('POINT(4 2.5)',
                            'POLYGON((0 0, 10 0, 10 5, 0 5, 0 0))');
-- Answer: MULTIPOINT((0 0), (0 5))

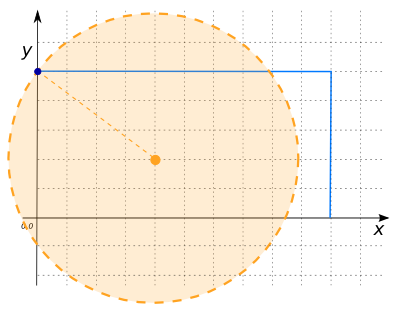

SELECT ST_ClosestCoordinate('POINT(4 2)',
                            'LINESTRING(10 0, 10 5, 0 5)');
-- Answer: POINT(0 5)

CREATE TABLE input_table(point GEOMETRY(POINT));
INSERT INTO input_table VALUES
    ('POINT(0 0)'),
    ('POINT(4 2.5)'),
    ('POINT(5 2.5)'),
    ('POINT(6 2.5)'),
    ('POINT(5 7)');

SELECT ST_ClosestCoordinate(point,
    'POLYGON((0 0, 10 0, 10 5, 0 5, 0 0))') CLCOORD FROM input_table;

Answer:

CLCOORD
POINT(0 0)
MULTIPOINT((0 0), (0 5))
MULTIPOINT((0 0), (10 0), (10 5), (0 5))
MULTIPOINT((10 0), (10 5))
MULTIPOINT((0 5), (10 5))
