ST_Contains
Signature
BOOLEAN ST_Contains(GEOMETRY geomA, GEOMETRY geomB);
Description
Returns TRUE if geomA contains geomB.
Note
Implements the OpenGIS Simple Features Implementation Specification for SQL version 1.2.1
Warning
This predicate does not yet support spatial indices, but it will in a future release. Use it in conjunction with && operator. See here for more details.
Examples
Cases where ST_Contains is true
SELECT ST_Contains(geomA, geomB) FROM input_table;
-- Answer: TRUE
geomA POLYGON |
geomB POLYGON |
|---|---|
POLYGON((1 1, 8 1, 8 7, 1 7, 1 1)) |
POLYGON((2 2, 7 2, 7 5, 2 5, 2 2)) |

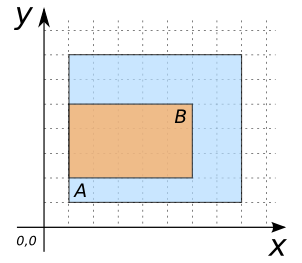

geomA POLYGON |
geomB POLYGON |
|---|---|
POLYGON((1 1, 8 1, 8 7, 1 7, 1 1)) |
POLYGON((1 2, 6 2, 6 5, 1 5, 1 2)) |

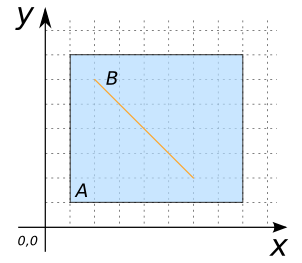

geomA POLYGON |
geomB LINESTRING |
|---|---|
POLYGON((1 1, 8 1, 8 7, 1 7, 1 1)) |
LINESTRING(2 6, 6 2) |

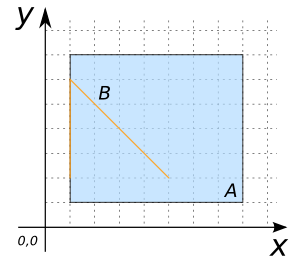

geomA POLYGON |
geomB LINESTRING |
|---|---|
POLYGON((1 1, 8 1, 8 7, 1 7, 1 1)) |
LINESTRING(1 2, 1 6, 5 2) |
geomA POLYGON |
geomB POINT |
|---|---|
POLYGON((1 1, 8 1, 8 7, 1 7, 1 1)) |
POINT(4 4) |
geomA LINESTRING |
geomB LINESTRING |
|---|---|
LINESTRING(2 1, 5 3, 2 6) |
LINESTRING(3 5, 5 3) |
geomA LINESTRING |
geomB POINT |
|---|---|
LINESTRING(2 1, 5 3, 2 6) |
POINT(4 4) |
Cases where ST_Contains is false
SELECT ST_Contains(geomA, geomB) FROM input_table;
-- Answer: FALSE

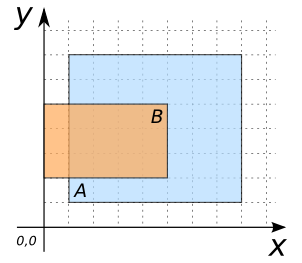

geomA POLYGON |
geomB POLYGON |
|---|---|
POLYGON((1 1, 8 1, 8 7, 1 7, 1 1)) |
POLYGON((0 2, 5 2, 5 5, 0 5, 0 2)) |

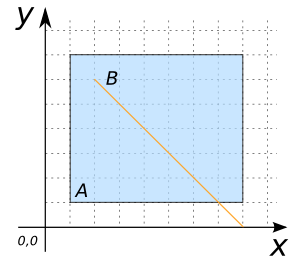

geomA POLYGON |
geomB LINESTRING |
|---|---|
POLYGON((1 1, 8 1, 8 7, 1 7, 1 1)) |
LINESTRING(2 6, 0 8) |

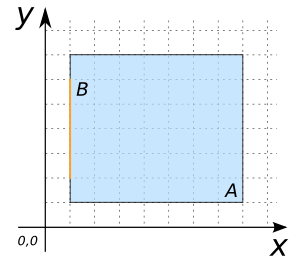

geomA POLYGON |
geomB LINESTRING |
|---|---|
POLYGON((1 1, 8 1, 8 7, 1 7, 1 1)) |
LINESTRING(1 2, 1 6) |
geomA POLYGON |
geomB POINT |
|---|---|
POLYGON((1 1, 8 1, 8 7, 1 7, 1 1)) |
POINT(8 4) |

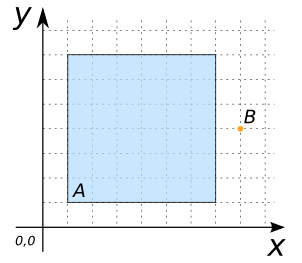

geomA POLYGON |
geomB POINT |
|---|---|
POLYGON((1 1, 7 1, 7 7, 1 7, 1 1)) |
POINT(8 4) |
