ST_Clip

Signatures

GEOMETRY ST_Clip(GEOMETRY geomToClip, GEOMETRY geomForClip);

Description

Clip a geometry geomToClip with another a geometry geomForClip.

Warning

geomToClip and geomForClip have to be (MULTI)POLYGON or (MULTI)LINESTRING

Examples

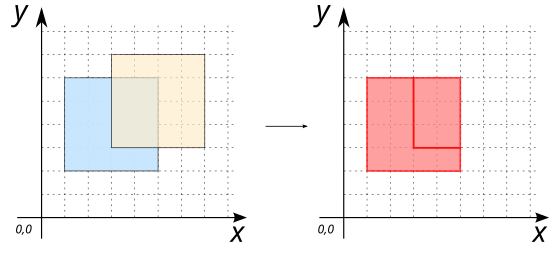

POLYGON with POLYGON

SELECT ST_Clip('POLYGON((1 2, 5 2, 5 6, 1 6, 1 2))',
               'POLYGON((3 3, 7 3, 7 7, 3 7, 3 3))');

-- Answer: MULTIPOLYGON (((1 2, 1 6, 3 6, 3 3, 5 3, 5 2, 1 2)),
--                       ((3 6, 5 6, 5 3, 3 3, 3 6)))

MULTIPOLYGON with POLYGON

SELECT ST_Clip('MULTIPOLYGON(((1 2, 5 2, 5 6, 1 6, 1 2)),
                             ((6 2, 7 2, 7 4, 6 4, 6 2)))',
               'POLYGON((3 3, 7 3, 7 7, 3 7, 3 3))');

-- Answer: MULTIPOLYGON (((5 3, 5 2, 1 2, 1 6, 3 6, 3 3, 5 3)),
--                       ((3 3, 3 6, 5 6, 5 3, 3 3)),
--                       ((6 2, 6 3, 7 3, 7 2, 6 2)),
--                       ((6 3, 6 4, 7 4, 7 3, 6 3)))

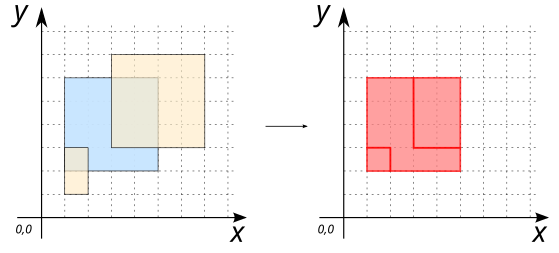

POLYGON with MULTIPOLYGON

SELECT ST_Clip('POLYGON((1 2, 5 2, 5 6, 1 6, 1 2))',
               'MULTIPOLYGON(((3 3, 7 3, 7 7, 3 7, 3 3)),
                             ((1 1, 2 1, 2 3, 1 3, 1 1)))');

-- Answer: MULTIPOLYGON (((1 3, 2 3, 2 2, 1 2, 1 3)),
--                       ((5 3, 5 2, 2 2, 2 3, 1 3, 1 6, 3 6, 3 3, 5 3)),
--                       ((3 6, 5 6, 5 3, 3 3, 3 6)))

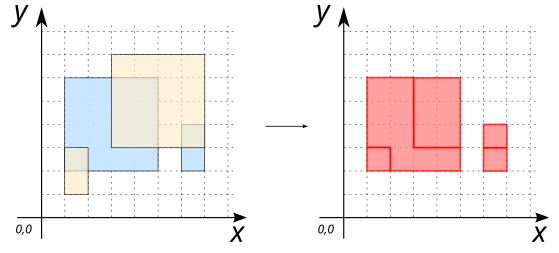

MULTIPOLYGON with MULTIPOLYGON

SELECT ST_Clip('MULTIPOLYGON(((1 2, 5 2, 5 6, 1 6, 1 2)),
                             ((6 2, 7 2, 7 4, 6 4, 6 2)))',
               'MULTIPOLYGON(((3 3, 7 3, 7 7, 3 7, 3 3)),
                             ((1 1, 2 1, 2 3, 1 3, 1 1)))');

-- Answer: MULTIPOLYGON (((2 2, 1 2, 1 3, 2 3, 2 2)),
--                       ((2 2, 2 3, 1 3, 1 6, 3 6, 3 3, 5 3, 5 2, 2 2)),
--                       ((5 3, 3 3, 3 6, 5 6, 5 3)),
--                       ((7 3, 7 2, 6 2, 6 3, 7 3)),
--                       ((6 3, 6 4, 7 4, 7 3, 6 3)))

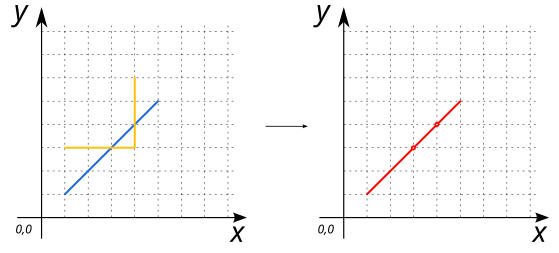

LINESTRING with LINESTRING

SELECT ST_Clip('LINESTRING(1 1, 5 5)',
               'LINESTRING(1 3, 4 3, 4 6)');

-- Answer: MULTILINESTRING ((1 1, 3 3), (3 3, 4 4), (4 4, 5 5))

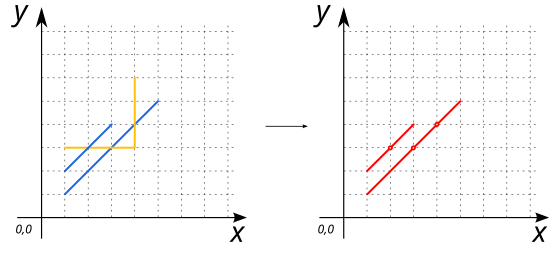

MULTILINESTRING with LINESTRING

SELECT ST_Clip('MULTILINESTRING((1 1, 5 5), (1 2, 3 4))',
               'LINESTRING(1 3, 4 3, 4 6)');

-- Answer: MULTILINESTRING ((1 1, 3 3), (3 3, 4 4), (4 4, 5 5),
--                          (1 2, 2 3), (2 3, 3 4))

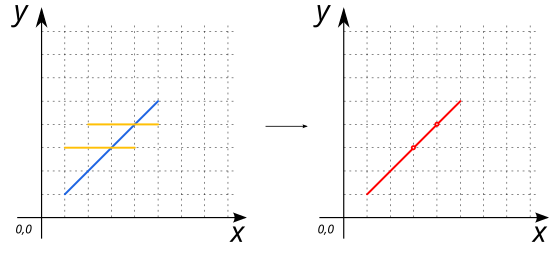

LINESTRING with MULTILINESTRING

SELECT ST_Clip('LINESTRING(1 1, 5 5)',
               'MULTILINESTRING((1 3, 4 3), (2 4, 5 4))');

-- Answer: MULTILINESTRING ((1 1, 3 3), (3 3, 4 4), (4 4, 5 5))

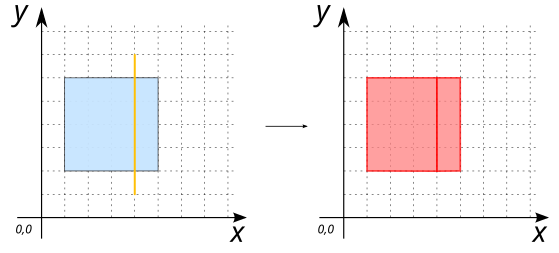

POLYGON with LINESTRING

SELECT ST_Clip('POLYGON((1 2, 5 2, 5 6, 1 6, 1 2))',
               'LINESTRING(4 1, 4 7)');

-- Answer: MULTIPOLYGON (((4 6, 4 2, 1 2, 1 6, 4 6)),
--                       ((4 2, 4 6, 5 6, 5 2, 4 2)))

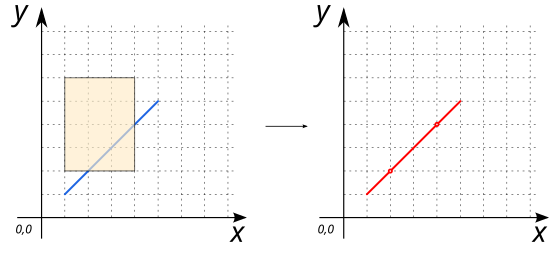

LINESTRING with POLYGON

SELECT ST_Clip('LINESTRING(1 1, 5 5)',
               'POLYGON((1 2, 4 2, 4 6, 1 6, 1 2))');

-- Answer: MULTILINESTRING ((1 1, 2 2), (2 2, 4 4), (4 4, 5 5))

Cases where the result is the same as geomToClip

SELECT ST_Clip('POLYGON((1 2, 5 2, 5 6, 1 6, 1 2))',
               'LINESTRING(4 4, 4 7)');

-- Answer: POLYGON ((1 2, 1 6, 4 6, 5 6, 5 2, 1 2))

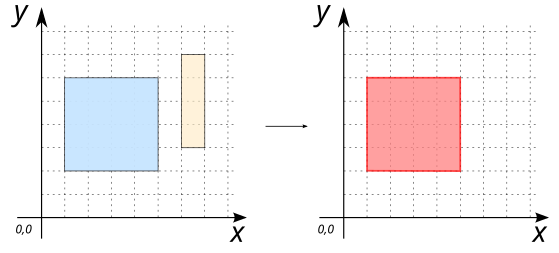

SELECT ST_Clip('POLYGON((1 2, 5 2, 5 6, 1 6, 1 2))',
               'POLYGON((6 3, 7 3, 7 7, 6 7, 6 3))');

-- Answer: POLYGON ((1 2, 1 6, 4 6, 5 6, 5 2, 1 2))
