ST_Intersection

Signature

GEOMETRY ST_Intersection(GEOMETRY geomA, GEOMETRY geomB)

Computes the intersection between geomA and geomB.

geomA and geomB can be POINTs, LINESTRINGs, POLYGONs or GEOMETRYCOLLECTIONs

Note

Implements the OpenGIS Simple Features Implementation Specification for SQL version 1.2.1

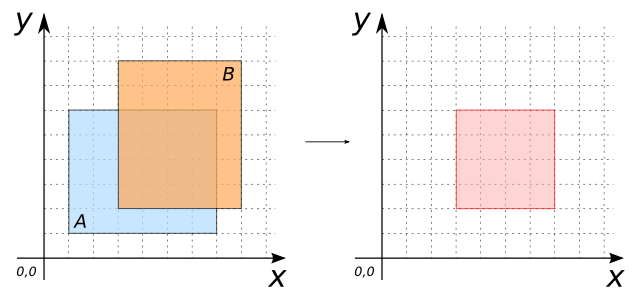

geomA POLYGON	geomB POLYGON
POLYGON((1 1, 7 1, 7 6, 1 6, 1 1))	POLYGON((3 2, 8 2, 8 8, 3 8, 3 2))

SELECT ST_Intersection(geomA, geomB) FROM input_table;
-- Answer:    POLYGON((3 6, 7 6, 7 2, 3 2, 3 6))

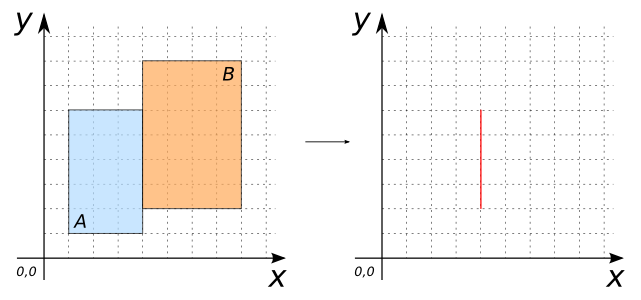

geomA POLYGON	geomB POLYGON
POLYGON((1 1, 4 1, 4 6, 1 6, 1 1))	POLYGON((4 2, 8 2, 8 8, 4 8, 4 2))

SELECT ST_Intersection(geomA, geomB) FROM input_table;
-- Answer:    LINESTRING(4 2, 4 6)

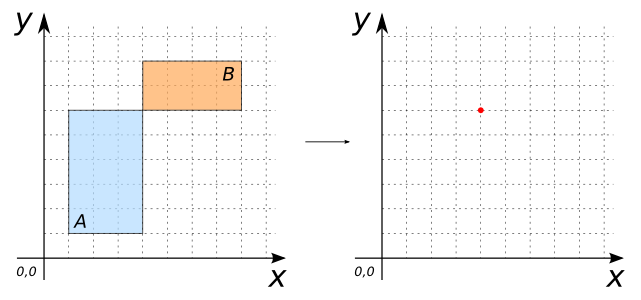

geomA POLYGON	geomB POLYGON
POLYGON((1 1, 4 1, 4 6, 1 6, 1 1))	POLYGON((4 6, 8 6, 8 8, 4 8, 4 6))

SELECT ST_Intersection(geomA, geomB) FROM input_table;
-- Answer:    POINT(4 6)

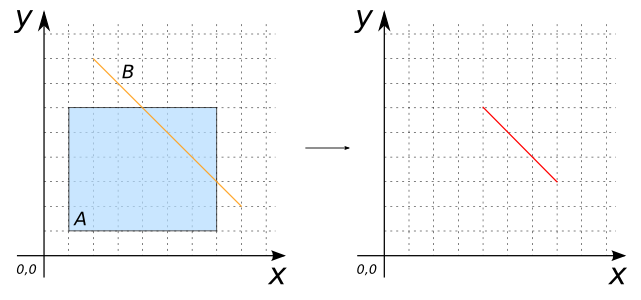

geomA POLYGON	geomB LINESTRING
POLYGON((1 1, 7 1, 7 6, 1 6, 1 1))	LINESTRING(2 8, 8 2)

SELECT ST_Intersection(geomA, geomB) FROM input_table;
-- Answer:    LINESTRING(4 6, 7 3)

geomA LINESTRING	geomB LINESTRING
LINESTRING(2 2, 6 6)	LINESTRING(2 8, 8 2)

SELECT ST_Intersection(geomA, geomB) FROM input_table;
-- Answer:    POINT(5 5)

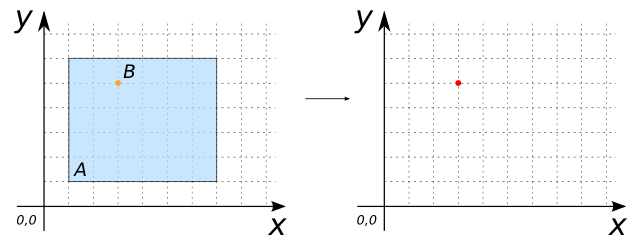

geomA POLYGON	geomB POINT
POLYGON((1 1, 7 1, 7 6, 1 6, 1 1))	POINT(3 5)

SELECT ST_Intersection(geomA, geomB) FROM input_table;
-- Answer:    POINT(3 5)
