ST_GeneratePointsInGrid

Signature

GEOMETRY ST_GeneratePointsInGrid(Geometry geom, int cellSizeX, int cellSizeY, boolean useMask)

Description

Generate a regular set of points according a x and y cell sizes.

The usemask argument is used to keep the points located inside the input geometry. If usemask = FALSE, the resulting points may be outside the input geomtry geom (depending on its shape).

Warning

The input geom has to be POLYGON or MULTIPOLYGON

Examples

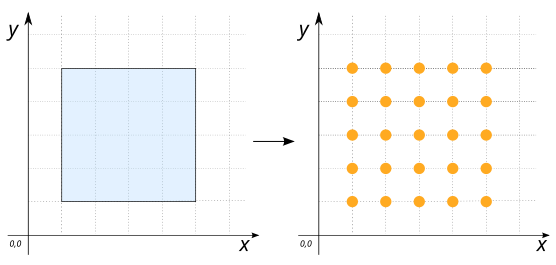

With POLYGON’s

SELECT ST_GeneratePointsInGrid('POLYGON((1 1, 5 1, 5 5, 1 5, 1 1))', 1, 1, true);

-- Answer:
-- MULTIPOINT ((1 1), (1 2), (1 3), (1 4), (1 5), (2 1), (2 2), (2 3), (2 4),
--             (2 5), (3 1), (3 2), (3 3), (3 4), (3 5), (4 1), (4 2), (4 3),
--             (4 4), (4 5), (5 1), (5 2), (5 3), (5 4), (5 5))

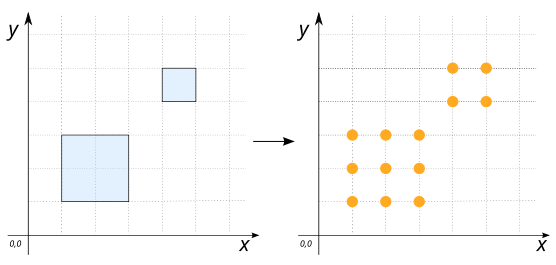

With MULTIPOLYGON’s

SELECT ST_GeneratePointsInGrid('MULTIPOLYGON(((1 1, 3 1, 3 3, 1 3, 1 1)),
                                             ((4 4, 5 4, 5 5, 4 5, 4 4)))', 1, 1, true);

-- Answer:
-- MULTIPOINT ((1 1), (1 2), (1 3), (2 1), (2 2), (2 3), (3 1), (3 2), (3 3),
--             (4 4), (4 5), (5 4), (5 5))

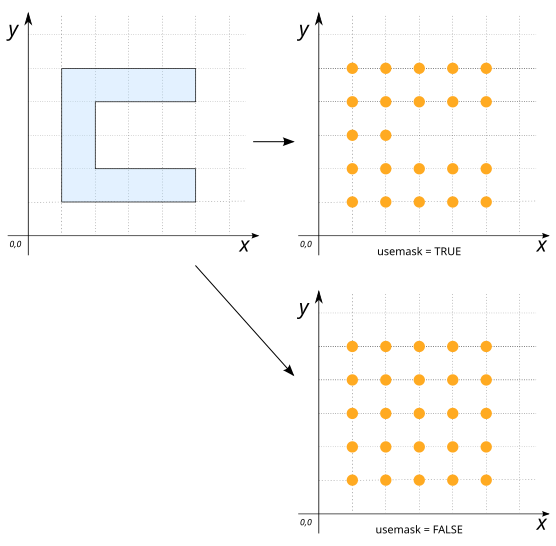

With usemask

usemask = TRUE

SELECT ST_GeneratePointsInGrid('POLYGON((1 1, 5 1, 5 2, 2 2, 2 4, 5 4, 5 5, 1 5, 1 1))',
                                1, 1, TRUE)

-- Answer:
-- MULTIPOINT ((1 1), (1 2), (1 3), (1 4), (1 5), (2 1), (2 2), (2 3),
--             (2 4), (2 5), (3 1), (3 2), (3 4), (3 5), (4 1), (4 2),
--             (4 4), (4 5), (5 1), (5 2), (5 4), (5 5))

usemask = FALSE

SELECT ST_GeneratePointsInGrid('POLYGON((1 1, 5 1, 5 2, 2 2, 2 4, 5 4, 5 5, 1 5, 1 1))',
                                1, 1, FALSE

-- Answer:
-- MULTIPOINT ((1 1), (1 2), (1 3), (1 4), (1 5), (2 1), (2 2), (2 3),
--             (2 4), (2 5), (3 1), (3 2), (3 3), (3 4), (3 5), (4 1),
--             (4 2), (4 3), (4 4), (4 5), (5 1), (5 2), (5 3), (5 4), (5 5))
