ST_IsSimple
Signature
BOOLEAN ST_IsSimple(GEOMETRY geom);
Description
Returns TRUE if geom is simple.
The SFS definition of simplicity follows the general rule that a Geometry is simple if it has no points of self-tangency, self-intersection or other anomalous points.
Simplicity is defined for each Geometry subclass as follows:
Valid polygonal geometries are simple, since their rings must not self-intersect.
Linear rings have the same semantics.
Linear geometries are simple iff they do not self-intersect at points other than boundary points.
Zero-dimensional geometries (points) are simple iff they have no repeated points.
Empty Geometries are always simple.
Note
Implements the OpenGIS Simple Features Implementation Specification for SQL version 1.2.1
Examples
SELECT ST_IsSimple('POLYGON((0 0, 10 0, 10 6, 0 6, 0 0),
(1 1, 2 1, 2 5, 1 5, 1 1),
(8 5, 8 4, 9 4, 9 5, 8 5))');
-- Answer: TRUE
SELECT ST_IsSimple('MULTILINESTRING((0 2, 3 2, 3 6, 0 6, 0 2),
(5 0, 7 0, 7 1, 5 1, 5 0))');
-- Answer: TRUE
SELECT ST_IsSimple('GEOMETRYCOLLECTION(
MULTIPOINT((4 4), (1 1), (1 0), (0 3)),
LINESTRING(2 6, 6 2),
POLYGON((1 2, 4 2, 4 6, 1 6, 1 2)))');
-- Answer: TRUE

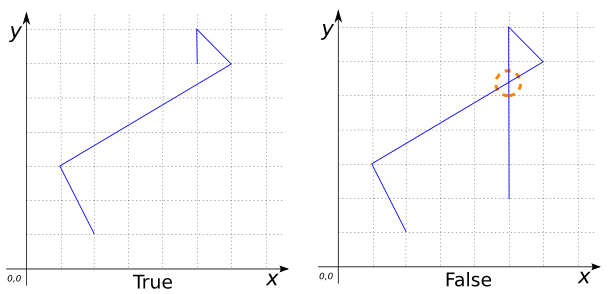

SELECT ST_IsSimple('LINESTRING(2 1, 1 3, 6 6, 5 7, 5 6)');
-- Answer: TRUE
SELECT ST_IsSimple('LINESTRING(2 1, 1 3, 6 6, 5 7, 5 2)');
-- Answer: FALSE
